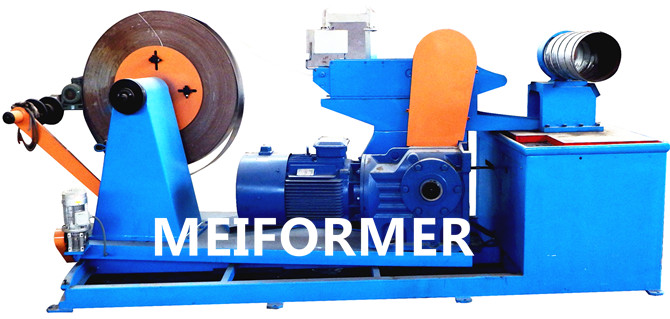

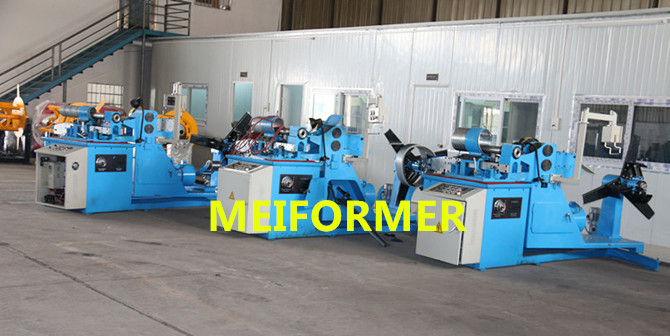

Spiral Tubeformer (Tool Model) 2000
Spiral Tubeformer (Tool Model) Spiral tubeformer also called spiral machine, by forming the mold design, molding to ensure standardization, easy to install. Formed to ensure efficient high-quality sealing seams and high-quality sealing seams and high strength. Replacement of mold and easy operation, fast. Cutting Size can choice Roller shear, Plasma Cutting or saw cutting.
Model
MDL-2-2000（合體，料卷與機器在一起）
Tube Diameter
Ф100-Ф2000mm
Material width
137mm (0.5-1.2mm) and 155mm (1.3-2.0mm)
Material thickness
galvanized steel:0.5-2.0mm
Stainless steel:0.5-1.2mm
Decoiler
inner coil: Ф460-520mm
Max. loading:1200kg
The decoiler is drove by a miniature motor on the slide to adjust feeding angle .
Seam lock
the surface of ducts
Feeding speed
0-25m/min,adjustable
Cutter
Roller shear and plasma cutting
Driven System
Cutting and turning flange adopt air-power
Compaction of feed rolls adopts hydraulic power
Mould
Steel
Total weight
2200kg
Diameter
Main machine：3400x1900x1800 mm
Run out table:2100x1200x1100m m
Power:
Total power 23KW.
main motor:22kw,
Hydraulic motor:0.75kw,
Seam locking wheel motor:0.12kw
Electrical source:
380V/50Hz/3ph (or by customer requirement.)
Cut-to-length:
Infrared sensor
Console
Touch screen and push buttons panel
